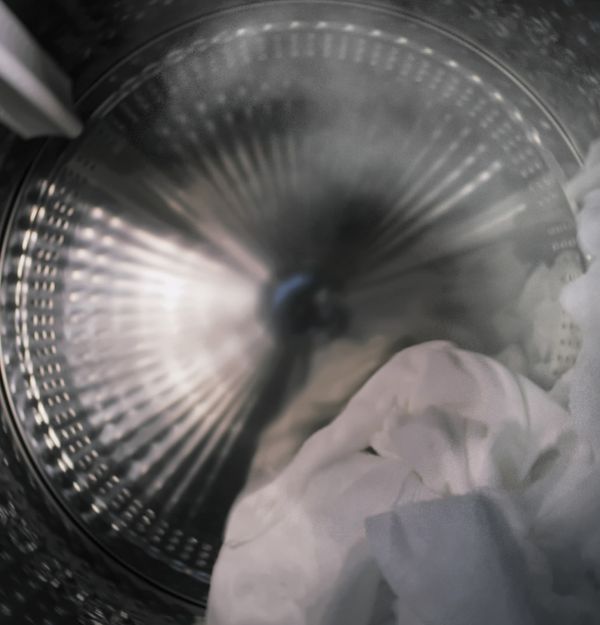

Steam
Penetrates deep into fabric fibers, loosening stains like tomato and grass, yet protecting your fabrics
Specs & Details
Dimensions: 33.25 H x 23.4375 W x 25.625 D
ACCESSORIES
| Fill Hose |
Included |
| Optional Drain Hose Extension Kit |
WH49X316 |
| Optional Riser |
GAF140SSNWW (sold separately) |
| Optional Stacking Kit |
GFA24KITL (sold separately) |
APPEARANCE
| Color Appearance |
White |
| Door Style |
See-Thru
Left Swing |
| Handle |
Pocket Handle |
| Handle Color |
Chrome |
| Installation |

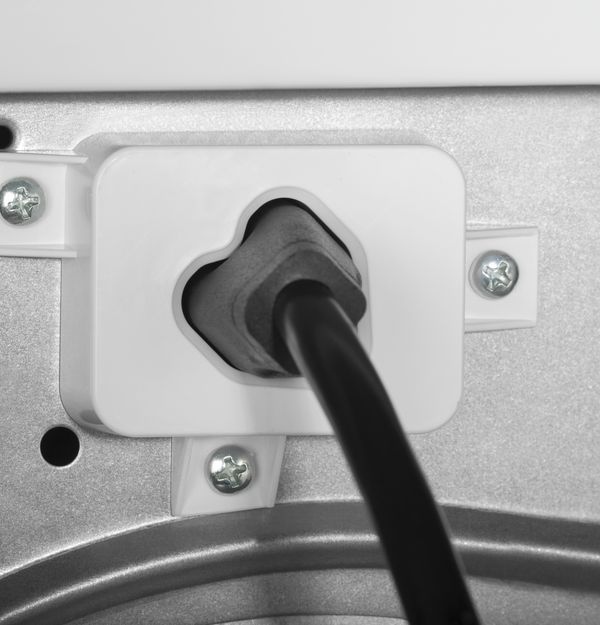

Plugs into 120V wall outlet or into back of dryer GFT14ESSMWW or GFD14ESSNWW |
CAPACITY
| Total Capacity (cubic feet) |
2.4 cu ft |

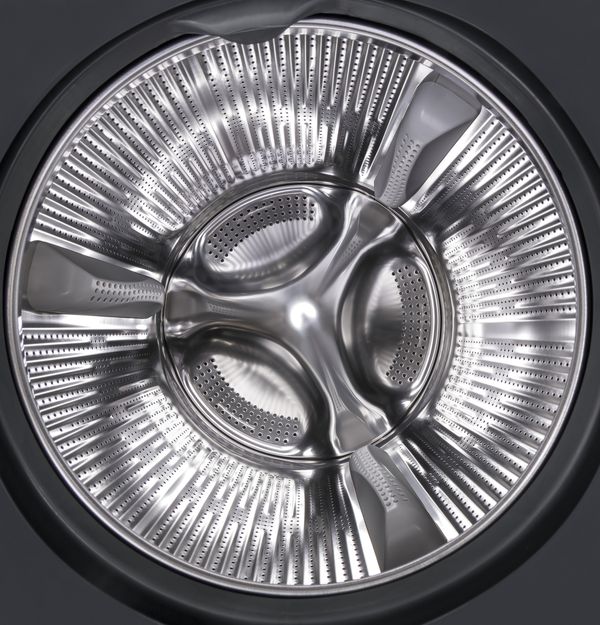

| Wash Basket Type |
Stainless Steel |
ECONOMICAL / QUIET
| Quiet Package |
Deluxe Quiet Design |
FEATURES
| Adaptive Capabilities |
Load-Sensing Adaptive Fill |
| Additional Washer Features |
Adjustable Leveling Legs
Internal heater
Fill and Drain Hoses Included
Vibration Control
Front Serviceable
Plugs into wall or dryer |
| Control Type |
Electronic
Electronic Touch w/ LED Count Down
LED |
| Custom Cycles |
Yes - My Cycle |
| Dispenser |
Detergent (Liquid/Powder) Timed Flow Through
Fabric Softener Timed Flow Through
Pretreat
Bleach |
| Maximum Spin Speed |
1400 RPM |
| Number of Cycles |
14 |
| Optional Soil Levels |
Extra Heavy
Heavy
Normal
Light
Extra Light |
| Product Type |
Front Load
Stackable |
| Receptacle Type |
3-Prong Grounding |
| Steam |
Yes |
| Style |
Front-Loading
Compact |
| Wash/Rinse Temperatures |
5 |
| Wash/Spin Speed Combinations |
5 |
| Washer Control Features |
Child Lock
Control Sounds On/Off
Delay Wash - Up to 24 hours
Cycle Countdown
LED Cycle Countdown
LED Cycle Status Lights
End-of-Cycle Signal |
| Washer Cycles |
Normal
Cold Wash
Stain Wash with Steam
Casuals with Steam
Rinse + Spin
Tub Clean
Whites
Heavy Duty
Towels
Casuals
Active Wear
Sanitize
Quick Wash
Delicates |
| Washer Options/Settings |
Delay Wash
Extra Rinse
Pre Wash |
| Water Levels |
Load-Sensing Adaptive Fill |
| Water Temp System |
Auto Temp |
| WiFi Connect |
Optional (Requires part no. PBX23W00Y1) |
POWER / RATINGS
| Circuit Breaker or Time Delay Fuse |
15 or 20 Amp |
| Electrical Requirements |
120V; 60Hz |
| Energy Consumption (kWh/year) |
97 |
| Hertz |
60 |
| Motor Speeds |
Variable |
| Volts/Hertz |
120V; 60Hz |
| Watts |
2400 |
WARRANTY
| Labor Warranty |
Limited 1-year entire appliance |
| Parts Warranty |
Limited 1-year entire appliance |
| Warranty Notes |
See written warranty for full details |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight |
183 lb |
| Depth with Door Open 90° |
42.8125 in |
| Net Weight |
166 lb |
| Overall Depth |
25.625 in |
| Overall Height |
33.25 in |
| Overall Width |
23.4375 in |
